How to Fix a Loose Pulley Mount: Easy DIY Guide
A rattling engine bay or chirping serpentine belt often points directly to accessory drive issues. Learning how to fix a loose pulley mount correctly prevents thrown belts, ruined water pumps, and catastrophic engine damage. If mounting hardware works loose, you must act before the bracket cracks or the internal threads strip out completely.
Most accessory drive systems operate under heavy dynamic tension. According to fastener guidelines from SAE International, improper torque or minor angular misalignment exceeding 0.5 degrees will quickly shred drive belts and destroy bearings. Finding the exact root cause of the looseness is your critical first step.

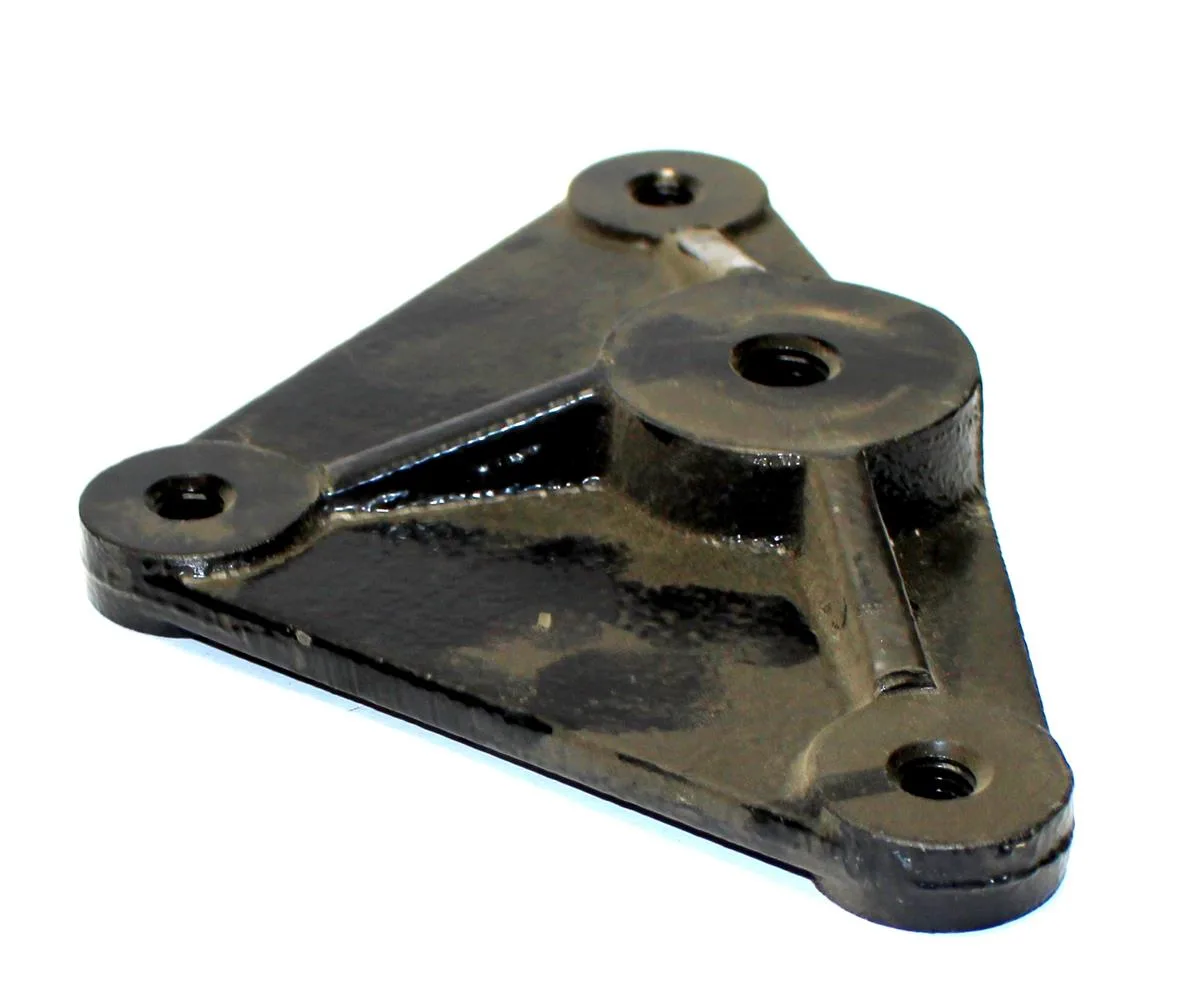

Image source: Web (Bing) / easternsurplus.net (Web image (fair-use with source credit))
Quick Answer
To fix a loose pulley mount, first relieve drive belt tension. Wiggle the pulley to isolate mount play from bad internal bearings. Remove the mounting bolt and inspect female threads for stripping.
Clean intact threads and apply medium-strength threadlocker before torquing to specification. Install a solid threaded insert if internal aluminum threads are stripped.
Why a Loose Pulley Mount Happens (And How to Tell Mount Play From Bearing Play)
Pulley mounts loosen due to continuous engine vibration, severe thermal cycling, or past over-torquing. Front-end accessory drive components endure rapid changes in rotational load. Over time, friction between the bracket and the engine block can cause fasteners to back out.
Before tearing down your engine bay, you must distinguish between a loose mount and a failed pulley bearing. A failed bearing wobbles on its internal race, but the mounting bolt and bracket remain rigid. A loose mount allows the entire bracket or central mounting bolt to shift against the engine block.
To test this, release the tensioner and slip the drive belt off the pulley. Grab the pulley firmly at the twelve and six o'clock positions and rock it back and forth.
- Bearing Play: The outer pulley wheel rocks, but the center bolt and base plate stay motionless. You will often feel a gritty, grinding sensation when spinning it by hand.
- Mount Play: The center bolt, bracket base, or mounting ear physically moves against the engine casing. The pulley itself might spin silently while the support structure shifts.
The Fast Diagnostic Decision Tree: Identifying Where the Play Lives
Once you confirm the mount itself is loose, isolate the exact failure point before reaching for a wrench. Follow this diagnostic workflow to identify your specific repair path.
| Symptom / Observation | Root Failure Point | Required Action |
|---|---|---|
| Bolt turns continuously without tightening | Stripped female threads in block or bracket | Install a solid threaded insert |
| Bolt is loose, but threads are clean and intact | Fastener backed out from vibration | Apply threadlocker and torque to spec |
| Bolt is tight, but bracket rocks on engine boss | Ovaled bolt hole or worn locating dowel | Replace bracket or sleeve the hole |
| Hairline crack visible near mounting ear | Structural fatigue from harmonic vibration | Replace the mounting bracket |
Start by backing out the central mounting bolt. Inspect the threads on both the bolt and inside the mounting hole using a bright flashlight. If metal shavings come out with the bolt, the internal threads have sheared off.
If the bolt is intact and the bracket hole is round, a simple re-torque with threadlocker will solve the issue.
Step-by-Step Fixes Based on What's Actually Broken
Branch 1: The Bolt Backed Out, but the Threads and Bracket Are Intact
This is the simplest fix. It happens when a fastener was under-torqued during previous maintenance or installed without threadlocker.
- Remove the mounting bolt completely.
- Clean the bolt threads and the internal mounting hole using automotive brake cleaner and a nylon wire brush.
- Inspect the mounting face for dirt, oil, or burrs that could prevent flat seating.
- Apply two drops of medium-strength blue thread-locking compound to the lower third of the bolt threads.
- Thread the bolt in by hand to avoid cross-threading.
- Torque the fastener to the factory specification using an accurate torque wrench.
Branch 2: The Internal Threads in the Engine Block or Timing Cover Are Stripped
Accessory mounts often thread into relatively soft cast aluminum. Over-torquing easily pulls these threads right out of the casing.
- Disconnect the negative battery terminal and remove surrounding components for clear access.
- Center-punch the damaged hole if you need to drill it out for an insert.
- Drill out the damaged aluminum threads using the drill bit size specified by your thread repair kit. Keep the drill perfectly perpendicular to the mounting boss.
- Tap new threads into the hole using clean cutting fluid. Back the tap out every half-turn to clear chips.
- Clean all metal shavings from the hole using compressed air and safety glasses.
- Thread the solid steel insert into place using its designated installation tool until it sits flush with the surface.
Branch 3: The Bolt Hole on the Mounting Bracket Is Ovaled or Elongated
When a pulley runs loose for an extended period, the steel bolt acts like a file against the bracket. This creates an ovaled, oblong hole. Simply tightening the bolt down will not keep the pulley aligned under belt load.
Replace the mounting bracket if it is a bolt-on stamped steel or cast unit. Finding a replacement from an OEM supplier or auto recycler is the most reliable path. If the part is obsolete or permanently integrated, press-fit a custom steel step bushing into the enlarged hole to restore the original bore diameter.
Branch 4: The Mounting Boss or Bracket Is Cracked
Cracks often develop around fastener ears due to excessive belt tension or unbalanced pulleys. Never attempt to patch a structural accessory bracket with epoxy or liquid metal.
Remove the bracket from the vehicle immediately. If the part is cast iron or steel, an experienced welder can grind out the crack and lay a structural TIG bead. If the crack extends into an aluminum engine block boss, consult a certified automotive machine shop for specialized in-chassis welding.

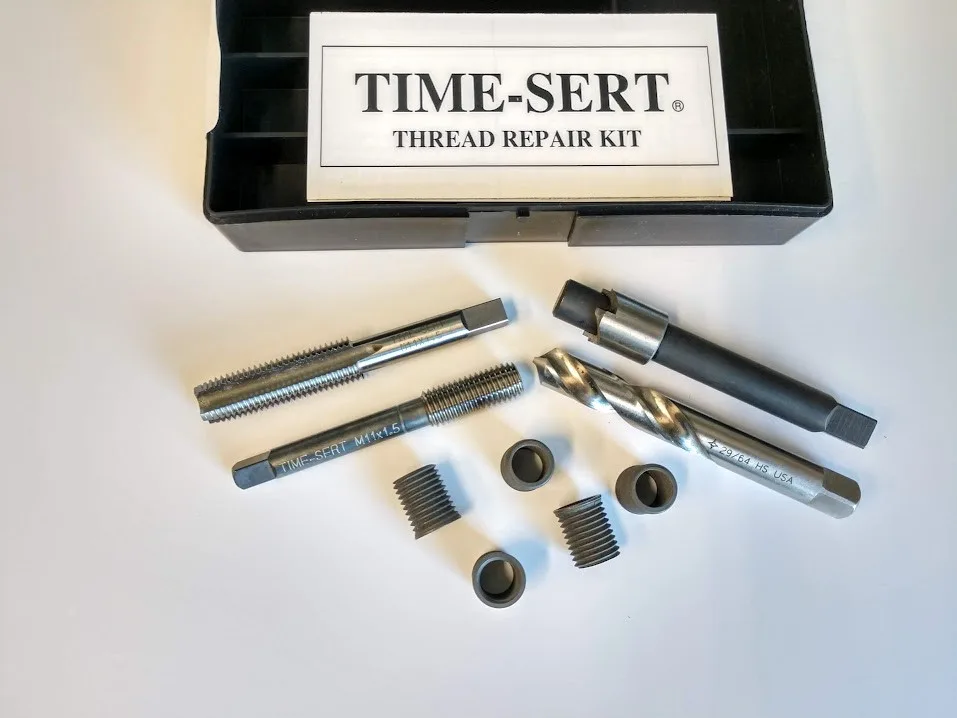

Thread Repair Face-Off: Time-Sert Bushings vs. Heli-Coil Wire Inserts vs. Through-Bolting
When female threads strip on an accessory mount, choosing the correct repair method ensures the pulley stays aligned under load.
Image source: Bing (Web (fair-use with source credit))
| Repair Method | Best Used For | Durability Rating | Installation Complexity |
|---|---|---|---|
| Solid Bushing (Time-Sert) | High-vibration accessory mounts, aluminum blocks | Highest | Moderate (requires counterbore) |
| Coiled Wire (Heli-Coil) | Light-duty mounts, non-critical brackets | Moderate | Low (drill, tap, insert) |
| Through-Bolt and Locknut | Open brackets with rear clearance | High | Very Low (no tapping needed) |
Solid bushings are the professional standard for accessory mounts. They feature a solid wall with synchronized internal and external threads. The top flange prevents the insert from winding too deep into the hole during installation.
Coiled wire inserts work well for general repairs, but heavy belt tension can sometimes distort the thin wire springs over time. Through-bolting with a Grade 8 fastener and a prevailing-torque locknut is an exceptional alternative if your bracket has open access behind the mounting ear.
Reassembly, Torque Specs, and Pulley Alignment Checklist
Once the mount is repaired, proper reassembly ensures you do not repeat the failure. Misalignment places uneven side-load forces on the mount, causing fasteners to loosen rapidly.
Image source: Web (Bing) / pmmonline.co.uk (Web image (fair-use with source credit))
- Clean the Mating Flanges: Scrape off any corrosion or old gasket material so the bracket sits flush against the block.
- Use the Correct Fastener Grade: Always use Class 10.9 or Grade 8 flanged bolts. Never replace an automotive accessory bolt with generic hardware store fasteners.
- Observe Torque Values: As of 2026, modern automotive service data specifies torque ratings between 18 and 45 ft-lbs (25 to 60 Nm) for most M8 to M10 accessory bracket hardware. Always verify the exact number in your factory service manual.

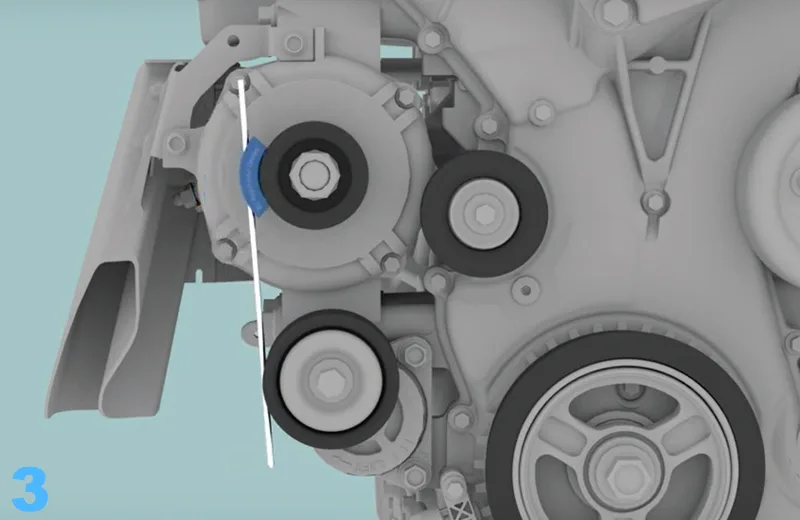

- Check Pulley Coplanar Alignment: Place a straightedge tool across the face of the repaired pulley and extend it to neighboring pulleys. The straightedge must touch both outer edges of each pulley with zero gap.
- Inspect the Belt Tensioner: Ensure the automatic tensioner arm swings freely and dampens accessory drive pulses without sticking.
Common Mistakes That Ruin Pulley Mount Repairs
Accessory mount repairs often fail because of rushed assembly or overlooked mechanical details. Avoiding these common installation mistakes will save you from repeating the entire teardown.
- Over-Torquing Bolts in Cast Aluminum: Cranking a ratchet without a torque wrench easily strips soft aluminum threads. Always use a calibrated torque wrench and follow manufacturer specifications precisely.
- Using Permanent Red Threadlocker by Mistake: High-strength red threadlocker requires high heat to remove. Use medium-strength blue threadlocker so you can service the accessory in the future without snapping bolts.
- Ignoring Pulley Misalignment: Tightening a mount while the bracket sits cocked puts severe lateral load on the belt. Even a one-degree tilt causes rapid belt edge fraying and throws belts off the track.
- Reusing Stretched or Damaged Fasteners: Engine vibration weakens stressed bolts. If the original bolt has damaged threads, necking, or corrosion, discard it and install a new Class 10.9 fastener.
- Drilling Off-Angle During Thread Repair: Tilting the drill bit while prepping for an insert creates crooked threads. The pulley bolt will sit tilted, throwing the entire belt line out of plane.
Pulley Mount Repair FAQs
Can you drive with a loose pulley mount?
No, you should not drive with a loose pulley mount. A loose mount allows the pulley to tilt under load, which will quickly throw or shred the serpentine belt. If the belt snaps, you instantly lose power steering, alternator charging, and critical engine water pump cooling.
What is the difference between blue and red threadlocker on pulley mounts?
Medium-strength blue threadlocker secures bolts against normal engine vibrations while still allowing removal with standard hand tools. High-strength red threadlocker creates a permanent bond that requires localized heat over 500 degrees Fahrenheit to break loose. Blue threadlocker is the standard choice for accessory pulley fasteners.
Why does a pulley mount keep coming loose after being tightened?
A pulley mount keeps loosening if the female threads are partially stripped or the bracket bolt hole has ovaled out. In these cases, the bolt cannot maintain adequate clamping force. Worn engine harmonic balancers or bent accessory shafts also produce abnormal vibrations that shake fasteners free.
Can I use a split lock washer instead of threadlocker on a pulley mount?
Split lock washers are not recommended for high-vibration automotive accessory drives. Under continuous cyclic loading, split washers can flatten, crack, and lose their spring tension. A flanged Class 10.9 bolt paired with medium-strength liquid threadlocker provides far more reliable clamp load retention.
How do I know if the mounting bracket needs full replacement?
Replace the bracket immediately if you see cracks near the bolt holes or structural webs. You must also replace it if the bolt hole has elongated into an oval shape and cannot be sleeved. Running a cracked or distorted bracket risks snapping the mount and damaging neighboring engine components.
